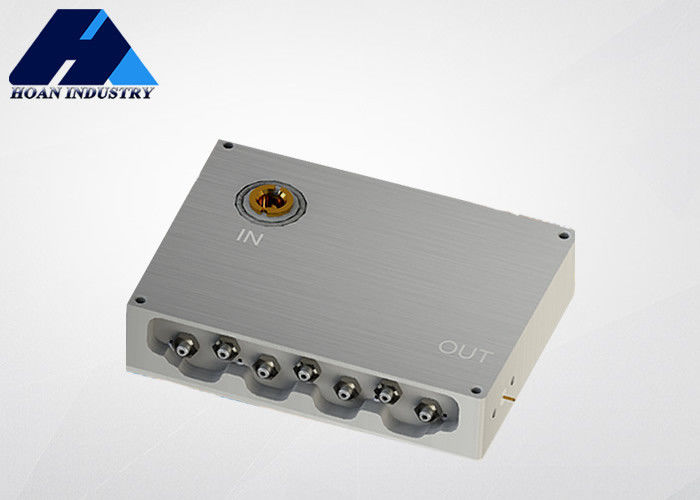

Small Size 1268 MHz Cavity Bandpass Filter JT-QTF-1268-MCX-1 Low Insertion Loss Customized

Small Size 1268 MHz Cavity Bandpass Filter JT-QTF-1268-MCX-1 Low Insertion Loss Customized

  • Small Size 1268 MHz Cavity Bandpass Filter JT-QTF-1268-MCX-1 Low Insertion Loss Customized
Small Size 1268 MHz Cavity Bandpass Filter JT-QTF-1268-MCX-1 Low Insertion Loss Customized
Product Details:
Payment & Shipping Terms:
Minimum Order Quantity: 1
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now
Detailed Product Description
Center Frequency: F0=1268MHz Center Frequency Insertion Loss: ≤1dB
VSWR: ≤1.3@f0±10MHz Rejection: ≥60dB@1.1GHz, ≥65dB@1.38GHz, ≥25dB@ F0±40MHz
Impedance: 50Ω Average Power: 1W
Interface Type: IN:MCX-K;OUT:glass Insulator Operating Temperature: -55℃~85℃
External Dimensions: 60×45×14(mm) Weight: 60g
Highlight:

1268 MHz Cavity Bandpass Filter

,

Low Insertion Loss Cavity Bandpass Filter

,

Customized Cavity Bandpass Filter

Summary

JT-QTF-1268-MCX-1 cavity filter is a bandpass filter used to select signal frequency bands, limit input signal bandwidth, suppress noise, and improve signal to noise ratio.

Mainly used in military Beidou navigation and communication systems, and can also be used in civilian Beidou navigation and communication subsystems.



Characteristic

Small size, light weight, strong environmental adaptability, and high reliability.

Small Size 1268 MHz Cavity Bandpass Filter JT-QTF-1268-MCX-1 Low Insertion Loss Customized 0

Main parameter

center frequency f0=1268MHz
center frequency insertion loss ≤1dB
rejection

≥60dB@1.1GHz, ≥65dB@1.38GHz,

≥25dB@ f0±40MHz

VSWR ≤1.3@f0±10MHz
average power 1W
impedance 50Ω
interface type IN:MCX-K;OUT:glass insulator
operating temperature -55℃~85℃
external dimensions 60×45×14(mm)
weight 60g
