960 To 1225MHz RF Bandpass Filters UHF VUF 50W RF Cavity Filter JT-QTF-1092-N

UHF VUF RF Bandpass Filters

50W RF Bandpass Filters

1225MHz RF Bandpass Filters

Request A Quote

Product Details

Passband Frequency:

960MHz～1225MHz

Insertion Loss:

≤1dB

Rejection:

≥40dB@860MHz，≥20dB@930MHz ≥30dB@1255MHz，≥45dB@1325MHz，≥55dB@1477MHz

VSWR:

≤1.3

Average Power:

≥150W

Impedance:

50Ω

Interface Type:

N-K

Operating Temperature:

-55℃～85℃

External Dimensions:

226×62×22（mm）

Weight:

320g

Highlight:

UHF VUF RF Bandpass Filters

50W RF Bandpass Filters

1225MHz RF Bandpass Filters

Payment & Shipping Terms

Minimum Order Quantity

Payment Terms

L/C, D/A, D/P, T/T, Western Union, MoneyGram

2200~220 MHz Customized Waveguide Low Insertion Loss Bandpass Filter JT-QTF-2230-MCX

Get Best Price

1575.42 MHz Customized Waveguide Low Insertion Loss Bandpass Filter JT-QTF-1575-MCX-1

Get Best Price

JT-QTF-1575-MCX Cavity Bandpass Filter Customized Waveguide Low Insertion Loss

Get Best Price

JT-QTF-1501-KFD Customized Bandpass Filter with 50Ω Impedance and N-KFD Interface

Get Best Price

86-29-88292913

Contact Now

Product Description

Summary

JT-QTF-1092-N cavity filter is a bandpass filter used to select signal frequency bands, limit input signal bandwidth, suppress noise, and improve signal to noise ratio.

Mainly used for frequency selection in military communication systems, and can also be used to suppress interference in civilian communication systems.

Characteristic

Low insertion loss, high suppression, high power capacity, and high reliability.

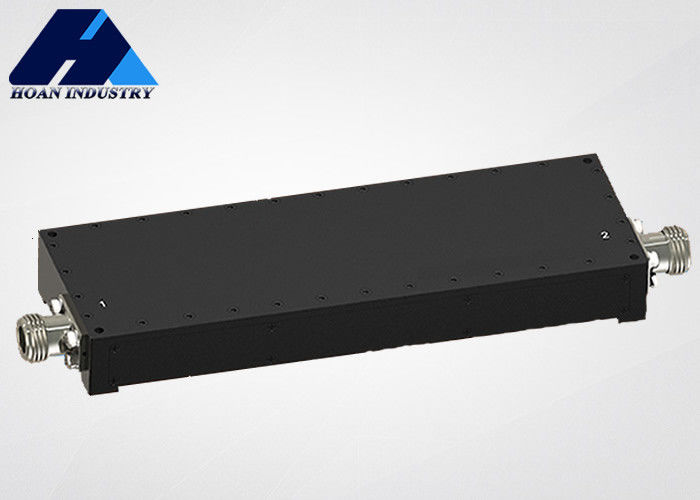

960 To 1225MHz RF Bandpass Filters UHF VUF 50W RF Cavity Filter JT-QTF-1092-N 0

Main parameter

passband frequency	960MHz～1225MHz
insertion loss	≤1dB
rejection	≥40dB@860MHz,≥20dB@930MHz ≥30dB@1255MHz,≥45dB@1325MHz,≥55dB@1477MHz
VSWR	≤1.3
average power	≥150W
impedance	50Ω
interface type	N-K
operating temperature	-55℃～85℃
external dimensions	226×62×22(mm)
weight	320g
